berhubung di thread aslinya calon buyer tidak bisa post, sementara ane pindah dimari gan

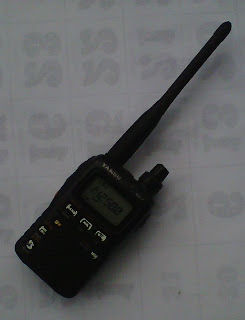

HT yaesu VX-2R
Kondisi fisik 90%, system normal
Harga Rp 1.1 jt boleh nego
CP wawan 085656 4165 90
Kirim via JNE
Transfer BNI/BCA - COD Surabaya
Note :
Antena bagian atas ditutup pakai isolator bakar, ada retakan pada karetnya, key pad sebagian terkikis, body mulus
Pernah dibuka sekali untuk menambah kepekaan mic
Komplit :
Dos Book, charge baterey, manual user
Batere original
Attention :
Khusus untuk pengguna rekber dan calon buyer pada umumnya , bila negosiasi sudah deal dan barang sudah dikirim, kemudian membatalkan sepihak dengan alasan tidak sesuai keinginan, BUYER TETAP BERKWAJIBAN UNTUK MEMBAYAR SESUAI KESEPAKATAN. Untuk itu ane sarankan silahkan tanya2 sedetail2 nya dulu, trims pakai banyak
[/spoiler]
Spoiler for open this:
Spoiler for open this:
for Spesifikasi:
VX-2R Specifications
GENERAL
Frequency Range Receive:
0.5 - 1.8 MHz (�BC BAND�)
1.8 - 30 MHz (�SW BAND�)
30 - 76 MHz (�6M�)
76 - 108 MHz (�FM�)
108 - 137 MHz (�AIR�)
137 - 174 MHz (�V-HAM�)
174 - 222 MHz (�VHF TV�)
222 - 420 MHz (�ACT 1� Action Band 1)
420 - 470 MHz (�U-HAM�)
470 - 800 MHz (�UHF-TV�)
800 - 999 MHz (�ACT 2� Cellular Blocked)
Frequency Range Transmit:
144 - 148 MHz
430 - 450 MHz
Channel Steps:
5/9/8.33/10/12.5/15/20/25/50/100 kHz
Frequency Stability:
�5 ppm (-10� C - +60 � C)
Repeater Shift:
�600 kHz (VHF)
�1.6/5.0/7.6 MHz (UHF)
Emission Type:
FD, FE
Antenna Impedance:
50 Ohms, unbalanced
Supply Voltage:
Nominal: 3.7 V DC, negative ground
Operating:
3.5 - 7.0 V, negative ground (EXT DC jack)
Current Consumption:
120 mA (Receive)
60 mA (Standby, Saver Off)
30 mA (Standby, Saver On)
100 �A (Auto Power Off)
1.3 A (1.5 W TX, VHF)
Operating Temperature:
-4� to 140� F (-20�C to +60�C)
Case Size:
1.9 x 3.2 x 0.9 inches (47x81x23 mm (w/o knob & antenna)
Weight:
4.6 oz (130 g.) (Approx., w/ant. & battery)
RECEIVER
Circuit Type:
Double-conversion superheterodyne (AM, NFM)
AM Radio / FM Radio
Single-conversion superheterodyne
IFs: 1st:
47.25 MHz (AM, NFM)
45.8 MHz (WFM)
130 kHz (AM Radio / FM Radio)
IFs: 2nd:
450 kHz (AM, NFM)
10.7 MHz (WFM))
IFs: 3rd:
- (AM, NFM)
1 MHz (WFM))
Sensitivity:
3.0 �V for 10dB SN (0.5-30 MHz)
0.35 �V for 12dB SINAD (30-54 MHz NFM)
1 �V TYP for 12dB SINAD (54-76 MHz NFM)
1.5 �V TYP for 12dB SINAD (76-108 MHz NFM)
1.5 �V TYP for 10dB SN (108-137 MHz NFM)
0.2 �V for 12dB SINAD (137-140 MHz NFM)
0.16 �V for 12dB SINAD (140-150 MHz NFM)
0.2 �V for 12dB SINAD (150-174 MHz NFM)
1 �V for 12dB SINAD (174-222 MHz NFM)
0.5 �V for 12dB SINAD (300-350 MHz NFM)
0.2 �V for 12dB SINAD (350-400 MHz NFM)
0.18 �V for 12dB SINAD (400-470 MHz NFM)
1.5 �V for 12dB SINAD (470-540 MHz WFM)
3 �V TYP for 12dB SINAD (540-800 MHz WFM)
1.5 �V TYP for 12dB SINAD (800-999 MHz NFM)
Selectivity (-6dB/-60dB):
12 kHz/35 kHz (NFM, AM)
Selectivity (-6dB/-20dB):
200 kHz/300 kHz (WFM)
AF Output:
50 mW @ 8 Ohms for 10% THD (@ 3.7 V DC)
100 mW @ 8 Ohms for 10% THD (@ 6.0 V DC)
AF Output Impedance:
8 Ohms
TRANSMITTER
RF Power Output:
1.5W (@ 3.7 V FNB-82LI 144 MHz)
3.0W (@ 6 V EXT DC Input 144 MHz)
1.0W (@ 3.7 V FNB-82LI 430 MHz)
2.0W (@ 6 V EXT DC Input 430 MHz)
Modulation Type:
Variable Reactance
Maximum Deviation:
�5 kHz
Spurious Emission:
At least 50 dB below carrier
Microphone Impedance:
2 k Ohm
Specifications are subject to change without notice and are guaranteed
within amateur bands only.
Frequency ranges and repeater shift vary according to transceiver
