DLS - LM Audio Best Price !!
Model : LM Audio - LM 3200.1D (Class D)
1 Channel Class D POwer Amplifier
1 x 3000 Watt (1 Ohm)
1 x 700 Watt RMS
Price List 4.750.000
LM AUDIO Vintage Series T8
* 4 Channel Vacuum Tube Power Amplifier
* 4 x 75 Watt (4 Ohms) - 13.8VDC
* 4 x 90 Watt (2 Ohms) - 13.8VDC
* 4 x 85 Watt (4 Ohms) - 14.4VDC
* 4 x 110 Watt (2 Ohms) - 14.4VDC
* 20 Hz - 20 kHz Frequency Response
Price List 3.950.000
Scandinavia 1 (Tweeter)
Description / type 28 mm soft dome tweeter
Impedance 4 ohm
Recommended amplifier 50 - 200 Watt
Frequency range 1 kHz - 30 kHz
Fs - Resonant frequency 655 Hz
Sensitivity 93 dB
Outer diameter 95 mm / 3,74"
Mounting hole 75 mm / 2,95"
Mounting depth 33 mm / 1,3"
Price List 3.100.000
Scandinavia 3 (MIDRANGE)
Description / type 3" midrange speaker with Kevlar cone
Impedance 4 ohm
Recommended amplifier 50 - 200 Watt
Frequency range 80 Hz - 16 kHz (in axis)
Fs - Resonant frequency 80 Hz
Sensitivity 84 dB
Outer diameter 84 x 84 mm / 3,31" x 3,31"
Mounting hole 78 mm / 3,25"
Mounting depth 45 mm / 1,77"
Recommended installation Open air or 1 litre (0,035 cuft) sealed enclosure
T/S parameters
single V/C
Fs 80 Hz Re 3,7 Ohm Qms 2,37
Vas 1,3 liter Vas 0,046 Cuft Qes 0,69
Qts 0,54 Sd 38 cm� BL 4,07
Price List 3.400.000

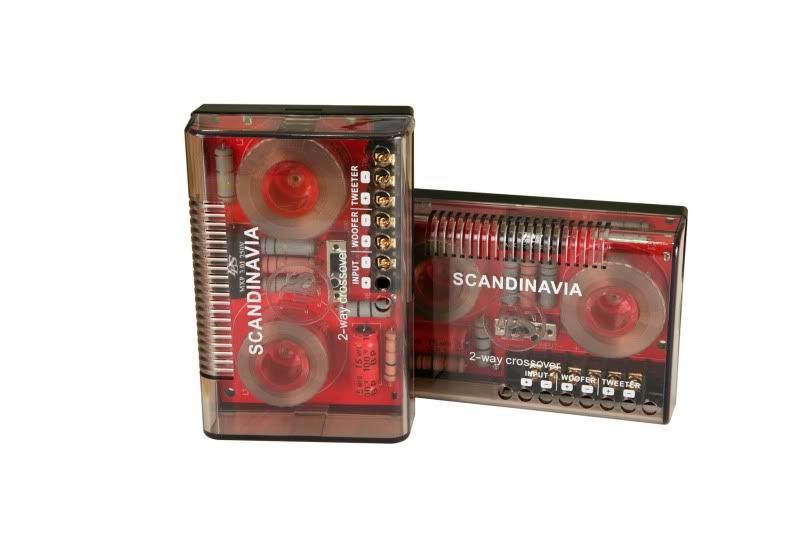

Scandinavia 6.2 (Passive)
Impedance 4 ohm Passive
Description / type 2-way filter with slope: LP 6 dB / HP 12 dB
Crossover point (Hz) 4 kHz
Dimension (W x D x H) 145 x 85 x 45 mm / 5,7 x 3,35 x 1,77"
Price List 2.200.000
Scandinavia 6
Description / type 6,5" mid bass driver
Outer diameter 165 mm / 6,5"
Impedance 4 ohm
Recommended amplifier 50 - 200 Watt
Frequency range 30 Hz - 1000 Hz
Fs - Resonant frequency 39 Hz
Sensitivity 86,7 dB
Magnet size 108 x 15 mm
Voice coil 50 mm / 2"
X-max +- 8 mm / 0,31" linear excursion
Mounting hole 140 mm / 5,51"
Mounting depth 67 mm / 2,63"
T/S parameters
single V/C
Fs 39 Hz Re 3,4 Ohm Qms 2,59
Vas 18,5 liter Vas 0,65 Cuft Qes 0,38
Qts 0,33 Sd 129 cm� BL 6,71
Price List 4.850.000

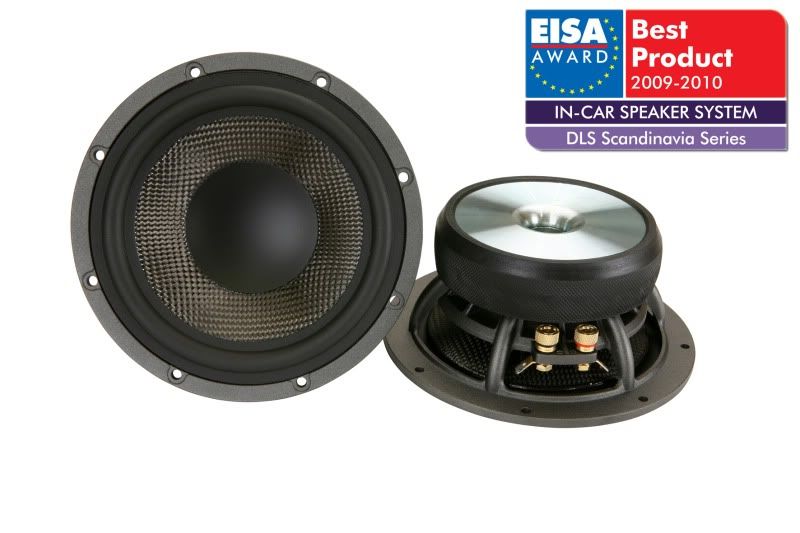

Scandinavia 6.2 (2-Way)
Impedance 4 ohm
Description / type 6,5" mid bass / midrange driver
Outer diameter 165 mm / 6,5"
Recommended amplifier 50 - 200 Watt
Frequency range 50 Hz - 6000 Hz
Fs - Resonant frequency 42,7 Hz
Sensitivity 85,4 dB
Voice coil 50 mm / 2"
Magnet size 108 x 15 mm
Mounting hole 140 mm / 5,51"
X-max +- 8 mm / 0,31" linear excursion
Mounting depth 67 mm / 2,63"
T/S parameters
single V/C
Fs 42,7 Hz Re 3,7 Ohm Qms 2,97
Vas 15 liter Vas 0,53 Cuft Qes 0,54
Qts 0,45 Sd 127 cm� BL 6,17
Price List 4.850.000
And Many More Product DLS - LM Audio
Contact Person (021-50121264)
YM : [email protected]
|
