Default Servo,Camera,Esc,Dll...MURAH

Kondisi Barang : Baru

Harga :



Lokasi Seller : Jawa Barat


Description :



om momod permisi lapaknya ya.... Smuanya baru 100%

Terima kasih...



PENAMPAKANNYA



2. Turnigy 30A BRUSHED ESC



Harga Rp. 150.000 ( backorder )



Got an old brushed motor laying around and want to put it to good use?

The Turnigy brushed ESC is an excellent speed controller with a linear throttle curve, Lipoly/NiMh ready and programmable braking.



Features:

The break function can be turn on/off by the jumper

Battery type can be chosen by a jumper

For Lipo the threshold for each cell is 3.0v, less than the threshold ESC will gradually reduce the output power

PWM frequency is 2KHz

Over heat protection over 110C

Throttle signal loss for 1sec will gradually reduce the output power, after 2sec completely cut-off



Spec.

Cont Current: 30A

Burst Current: 40A

BEC Mode: 5v/1A

Lipo Cells: 2-3

NiMH : 4-10

Weight: 21g

Size: 45x21x8mm

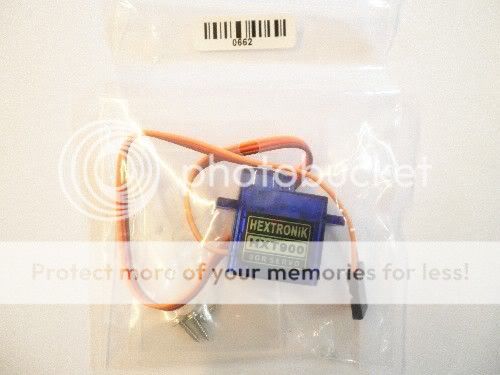

3. HXT900 9g / 1.6kg / .12sec Micro Servo



Harga Rp.60.000 ( 20pcs )



HXT900, one of the most famous and the best value micro servos available.

Used by tens of thousands of hobbyiests world wide. The HXT900 is the #1 trusted low cost 9g servo.



Size : 21x12x22 mm / 0.74x0.42x0.78 in

Voltage : 3v ~ 6v

Weight: 9g / 0.32oz

Speed : 0.12 sec/60(4.8V)

Torque : 1.6 kg-cm

Working Temp : -30C~60C

Teflon Bushing, 15cm wire, coreless motor

Servo arms & screw included



WARNING

These servos can be found on eBay and other asian sellers at close to this price, however be warned, they do not contain Taiwan/Japan components. HexTronik (the manufacturers of these servos) have two standards, one is for local sale, and the other is export quality with imported connectors and resin gears from Taiwan and Japan.

Our HXT500 and HXT900 are export only, and not built for the domestic market. You will not find the same quality servo for less, anywhere!



4.Turnigy MG90S Metal Gear Servo 1.8kg / 13.4g / 0.10sec



Harga Rp. 80.000 ( 1pcs )



Weight: 13.4g

Dimension: 22.8*12.2*28.5mm

Stall torque: 1.8kg/cm (4.8V) - 2.2kg/cm (6.0V)

Operating speed: 0.10sec/60degree(4.8v) - 0.08sec/60degree(6.0V)

Operating voltage: 4.8-6.0V

Temperature range: 0- 55deg

Servo Plug: JR (Fits JR and Futaba)



5. GWS EP Propeller (DD-4540 114x102mm)



Harga Rp.60.000 (6 pcs/1set)



All GWS EP Propellers Stocked!

GWS EP Propeller (DD-4540 114x102mm)

Colours vary. Not always orange



DDirect Drive (fast spinning) -Straight Edge

RD:Reduction Drive (Slow Fly, Outrunner or Gearbox) - Curved Edge

Note: Propellers colour may differ from that in the photo



6. Turnigy 138mAh 1S 10C (Kyosho, E-flite, Parkzone Etc)



Harga Rp. 30.000 (backorder)



Excellent for the Kyosho Minium models and similar.

The new v2 battery has an improved layer packing and better formular, giving full capacity and a better discharge curve.



Spec.

Capacity: 138mAh

Voltage: 1S / 1 Cell / 3.7v

Discharge: 10C Constant

Weight: 3.7g (including balance & discharge plug)

Dimensions: 35x12x6mm

Balance & Discharge Plug: JST-XH



We have marked this cell as 138mAh, however other unscrupulous vendors may mark it as 150mAh.





7. HXT900 Replacement Gear Set



Harga Rp.17.500 BackOrder



8. HXT500 Replacement Gear Set



Harga Rp. 17.500 (backorder)





9. Turnigy KeyChain Camera w/o memory card




Harga Rp. 230.000 (1pcs)

Turnigy Keychain Camera Manual:

http://www.hobbyking.com/hobbyking/s...rkey%20cam.doc



http://www.hobbyking.com/hobbyking/s...struction;.rar



Its ultra small, light weight design and low cost make it a great camera for casual in flight videos.

Strap it to your wing, fuse, tail, canopy or just about anywhere. Its recessed buttons prevent vibration from changing the functions and makes it easier to attach to your model. And because the camera lense is mounted on the edge the whole case is more aerodynamic than other cameras.

The SD card (Not included) is removable and the camera has a USB port for direct PC copying.

There are many similar cameras to this one on the market, but be assured this model has a true 30 frames per second rating and works perfect with a fast SANDisk memory card (Sold Separately) for jitter free picture motion. Lense hardware is 640x480px and maintains the correct aspect ratio without AVI manipulation*. Producing a clear 640x480 AVI jitter free movie.



Specification:

Size: 52x30x12mm

Weight: 18g incl. battery & keychain

Video lense: 640x480 pixel (correct aspect ratio)

Battery: Lithium Polymer

FPS: 30 (True Rating)

Pixel: 1280x960

Continuous video recording time: 60min

Voice-activated standby time: 120 hours standby time

Capacity of memory card: Can support upto 16GB (max.)

USB interface: USB1.1/2.0



Included accessories:

Turnigy TD16 camera

USB Connector

*Other similar cameras have software AVI formatting to 720x480px, reducing clarity of the 640x480 native image from the lense. While this sounds good on paper, it makes the movie less clear and enjoyable.



Required:

Micro SD card 2GB (Sold Separately See related items)



10. HobbyKing 12A BlueSeries Brushless Speed Controller



Harga @ Rp 130.000 ( backorder )



Factory default settings:

Brake: off

Battery type Detect: LiPo with Automatic Cell

Low voltage cutoff threshold: Medium (3.0V/65%)

Timing setup: Automatic

Soft Acceleration Start Up: Medium

Governor mode : OFF

Frequency : 8kHz

Low voltage cutoff type: Reduce power



Spec.

Cont. Current: 12A

Burst Current: 16A/10sec

Battery: 2-4 Cell Lipo / 5-12 Cell Ni-XX

SBEC: 5V/ 1A Output

Size: 22*21*4mm

Weight: 10g



11.Hobby King 401B AVCS Digital Head Lock Gyro



Harga @ Rp 190.000 ( backorder )



HARGA DIATAS BELUM TERMASUK ONGKOS KIRIM


Pengiriman via TIKI JNE JNE - Express Across Nations / COD DEPOK




AN : HERI GUNAWAN


ACC 2160-5838-62






ACC 142-00-1032422-5






Call or Sms


IM3 : 0856.45.3111.41

YM : [email protected]



Web : www.Depok-AeroModelling.com







BUKTI RESI2 SEBELUMNYA





LAPAK ANE YANG SATUNYA :

http://www.iflyer.org/viewtopic.php?f=19&t=6053



http://www.iflyer.org/viewtopic.php?f=46&t=5992



http://www.ceriwis.us/showthread.php?t=6992281



http://www.kaskus.co.id/showthread.p...#post392097753



http://www.ceriwis.us/showthread.php?t=7099270



http://www.kaskus.co.id/showthread.p...#post401657990
