#1
6th November 2012
|
||||
|
||||
Jual audio DAC USB & Coaxial DIR9001 + WM8740DAC
Kondisi Barang : New

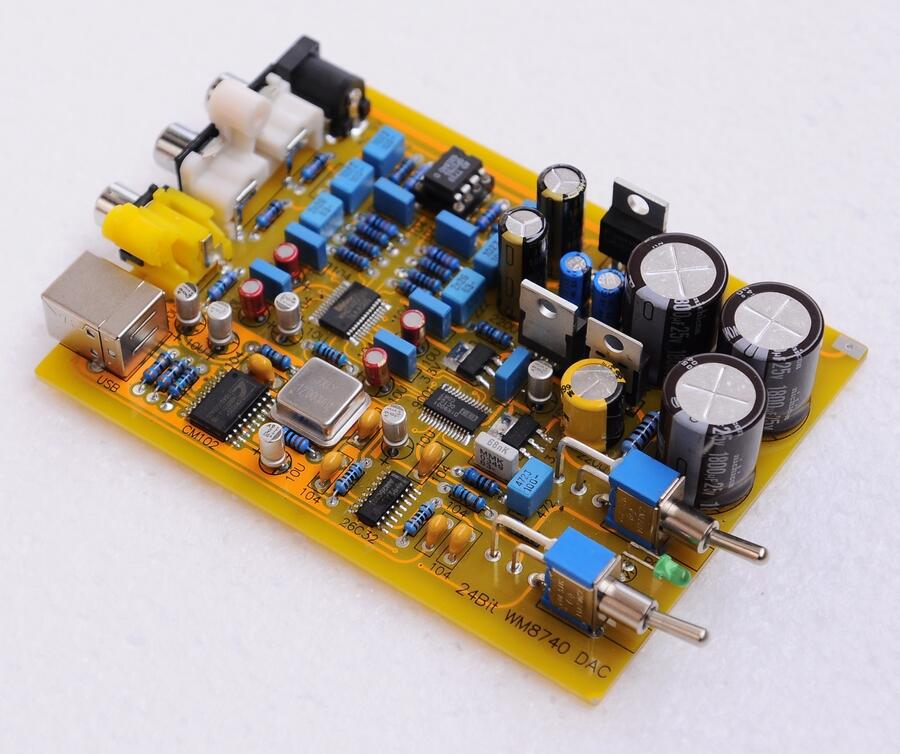

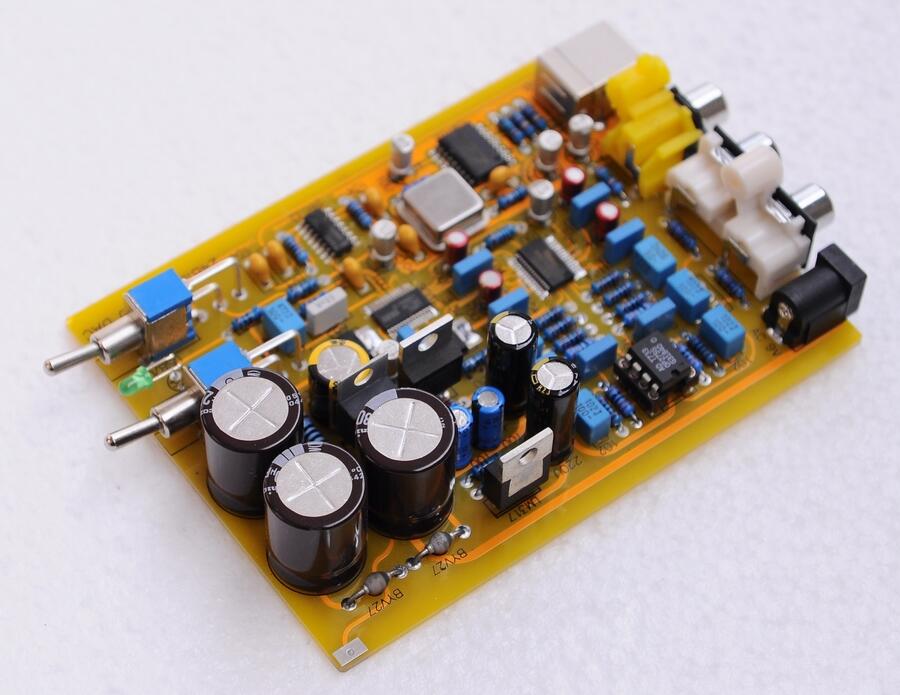

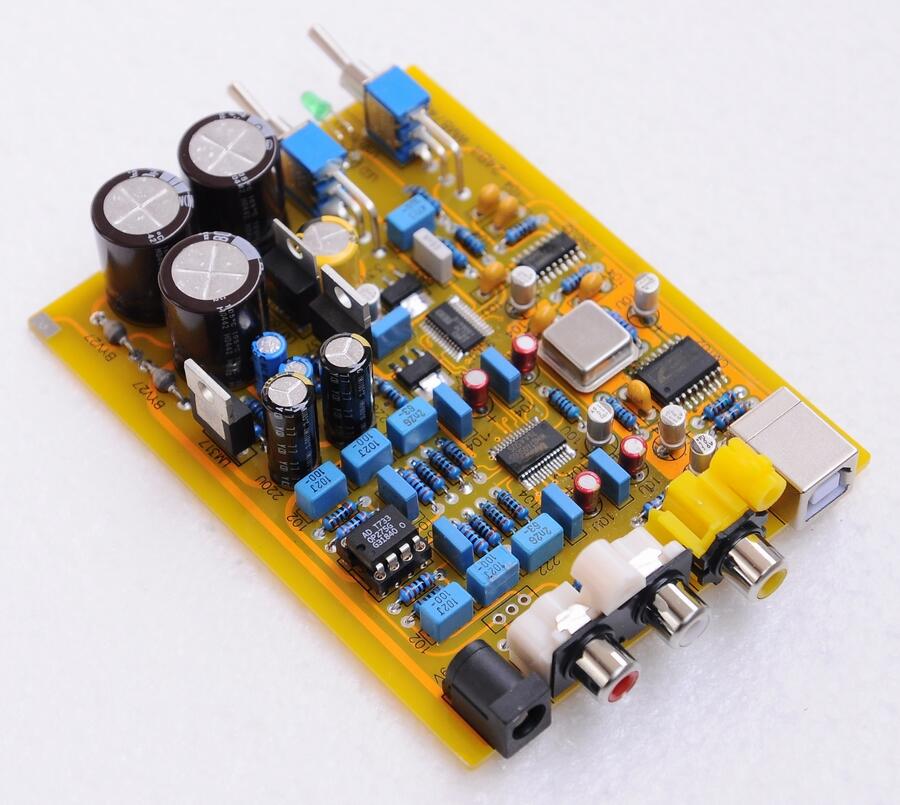

Harga : Lokasi Seller : Jawa Barat Description : Agan-agan ceriwisser, Numpang jualan barang baru, USB, Coaxial SPDIF audio DAC. Feature : Input Voltage: AC 9-12V, 0.5A Board Size: 82mm * 110mm USB converter chip coaxial uses a dedicated CM102S, functions and effects with PCM29 ** series is the same, whichever digital signal (S / PDIF), and uses high-precision active crystal 10PPM, quality has further improved. Digital receiver is the BB's DIR9001, sampling rate up to receive the 24bit/96K digital audio signal. Advanced 24bit/192K decoder chip WM8740, with a good musical expression. Many U.S. and European manufacturers by the use of sound! Filter the output using a bile taste of dual op-amp OP275, and with op-amp socket, according to their preferences for different op-amp. AC AC9-12V input voltage doubler rectifier multiple regulated power supply, (+-10V, +5 V, +3.3 V * 2) in terms of dynamics and tone have a very good performance. (1) USB DAC use: When you make the machine via USB cable and connect the computer when requested to switch the switch down, the computer will direct the board to the current default sound card, your original sound card will be blocked, you can play any audio in the computer software the board will direct reduction of decoding high-fidelity audio signals, you can directly access via RCA output block amplifier or multimedia speakers. (2) digital coaxial input DAC function using: When you decode the board and the coaxial line so that the wheel of S / PDIF (coaxial) output to connect, please dial the switch up, this time using the board to determine the S / PDIF input line, you can put the DAC when pure decoder, the machine will direct reduction of high-fidelity audio signals. Components : LM317, LM337, LM7805 Three-terminal regulator IC. Panasonic pitched top filter capacitor (FC series), (25V1500 * 3) Sanyo solid capacitors, ELNA audio-specific capacitors. Philips BC, Siemens, EVOX other fever capacitors. Rings precision metal film resistors. Imported high-speed fast recovery rectifier diodes. Advanced gold-plated RCA output lotus seat, high-quality power supply. Input Switch. Harga : Rp. 400.000    Bila berminat silakan hubungi 0812-805-69-444 atau [email protected] atau PIN BB 28428C1D Lokasi Depok Thanks, Lukman B Terkait:
|
|
|
|
