Default Bluetooth GPS Receiver Terkecil Untuk Navigasi Apple Android BB Laptop PC HP Tablet

Kondisi: Baru
Harga (Rp): 123456
Lokasi: Jawa Timur

WELCOME TO OUR STORE



PRESENT





BLUETOOTH GPS RECEIVER TERKECIL PRAKTIS BISA DI PAKE GANTUNGAN KUNCI[/CENTER]


Quote:
BAGI ANDA YANG MEMILIKI GADGET ( TABLET PC / HP / LAPTOP ) TAPI TIDAK MEMILIKI GPS INTERNAL , JANGAN KHAWATIR DENGAN ALAT INI PROSES NAVIGASI PERJALANAN ANDA BISA DI LAKUKAN, ALATNYA KECIL TIDAK RIBET BISA DI GANTUNGKAN SEBAGAI GANTUNGAN KUNCI





Features:
51 channel all-in view tracking
MTK chipset with ultra high sensitivity to -158dBm
Up to 10 hrs operating time
Smart Power Save Mechanish (Transystem Patent)
Fuzzy Auto On/Off (Transystem Patent)


Application:
Personal/ portable Navigation (PDA/ Smartphone)
Automotive
Location Based Services
Geographic Survey

Product Specification:
--------------------------------------------------------------------------------
General
GPS Chipset: MTK GPS
Frequency: L1,1575.42 MHZ
C/A Code: 1.023MHz chip rate
Channels: 51 CH for tracking
Antenna: Built-in patch with LNA
Datum: WGS-84

Acquisition Rate
Cold Start: 36 sec, average
Warm Start: 33 sec, average
Hot Start: 1 sec, average
Reacquisition: <1sec

Accuracy (none DGPS)
Position: Without aid: 3.0m; 2D-RMS DGPS:2.5m,2D-RMS
Velocity: Without aid: 0.1m/s; DGPS:0.05m/s
Sensitivity: -158 dBm (tracking)

Dynamic
Altitude: < 18,000m
Velocity: < 515m/sec
Acceleration: 4g

Protocol
GPS Output: NMEA-0183(V3.01) - GGA, GSA, GSV, RMC (default)
Data bit : 8, stop bit : 1 (Default)

Interface
Bluetooth? Version 1.2 compliant
Output Power: Class 2 (10 meter in free space)
Frequency: 2.4 to 2.48 GHz

Power
Battery: Li-Ion
Operation Time: 10 hrs
Power Charge: Mini USB

Environmental
Operating: -10�C to +60�C
Storage: -20�C to +60�C
Charging: 0�C to +45�C
Humidity: 5% to 90% non-condensing

Physical
Dimension: 46(W) x 32(L) x 14.7(H) mm
Weight: 22g

Others
Certification: CE / FCC / C-tick
LED: Bluetooth / GPS / Battery / charger status


Package Contents:
--------------------------------------------------------------------------------

Bluetooth GPS receiver x 1
Mini-USB cable x 1

Quote:
LANGKAH-LANGKAHNYA
1. Cari software bluetooth receiver untuk gadget anda ( misal untuk apple adalah BTSTACK ), ada yg langsung pairing tanpa software receiver contoh nya blackberry.
2. Cari Software untuk navigasi ( misal papago , garmin , igo , navitell , dll )
3. sambungkan perangkat dan anda siap bernavigasi


Quote:
CONTOH DI PAIRING DENGAN DI IPOD TOUCH



CONTOH DI PAIRING DENGAN DI BB

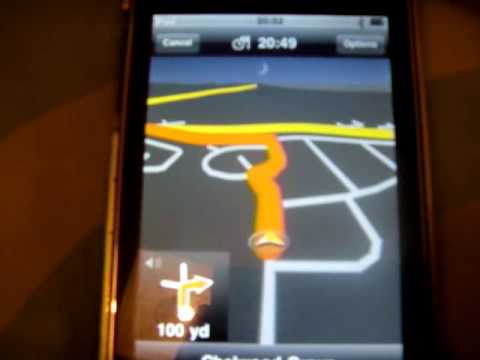

CONTOH SOFTWARE PAPAGO







Quote:


Harga : 400.000

HP : 085755379506

PIN BB : 21456230

YM : caio_rocks
[/CENTER]





Quote:
RIBUAN TRANSAKSI BERSAMA CAIOROCKS SEMUA PUAS
