JUAL Planet Gt-90x Series Gigabit Ethernet Media Converter

irangga18

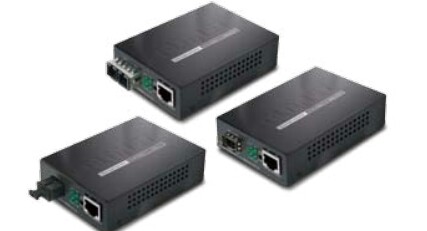

Dijual PLANET GT-90x series Gigabit Ethernet Media Converter

• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
• One-channel media conversion between 10/Ke Nomor HP User ProfileBase-T
and 1000Base-SX / LX
• TP port supports 10/Ke Nomor HP User ProfileBase-T auto-negotiation and
auto-MDI/MDI-X
• 1000Base-SX: 50/125?m or 62.5/125?m multi-mode fiber
cable, up to 220/550m on GT-902
• 1000Base-LX: 9/125?m single-mode cable provides long
distance for 10km on GT-902S
• 1000Base-LX WDM interface for up to 15km (single-mode fiber
9?m/125?m) on GT-906A15/B15
• 1000Base-LX WDM interface for up to 60km (single-mode fiber
9?m/125?m) on GT-906A60/B60
• 1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
• Compact size for working with PLANET MC family Media
Chassis (MC-Ke Nomor HP User ProfileR/1500)
• Wall-mountable hardware design
• Built-in IP-based Web interface for remote management
• Layer 2 Management Feature
- IEEE 802.3x PAUSE Frame Flow Control for Full-Duplex mode
- Store-and-Forward mechanism
- Built-in Web interface for remote management and setup
- Manual IP address setting / DHCP client for IP address assignment
- SNMP v1 / v2c monitor / private Enterprise MIB
- Event trap and SNMP trap support
- Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port
- Supports Port Status / Ethernet Statistics on both TP and Fiber interface
- Supports Maximum frame size to 16K bytes
- Loop detection / Broadcast / Multicast / Unicast storm control
- Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q
VLAN
- 802.1p Tag Priority / IP address priority / IP DSCP option in Quality of Service Mode and Strict Priority / Weighted Round
Robin (WRR) QoS policies
- TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
- 16 TCP / UDP Filter groups
- Password setting, IP setting and devices description setting through Planet Smart discovery utility
- Firmware upgrade via remote Web interface
• External DC 5V 2A power supply
• LED indicators for easy network diagnosing
• Reset Button at the front panel for the factory default reset
• Choice of fiber-connector from SC, LC, WDM, multi-mode /
single-mode fiber /1000Base-SX / LX mini GBIC module

**** KAMI MEMBERKAN HARGA TERBAIK UNTUK ANDA ****

BUKTIKAN dengan menghubungi saya, Berminat? Hubungi saya segera
Indra Rangga
No Telepon : 082111989557 (WA tersedia)
email : [email protected]

*Melayani pembelian kuantiti dalam jumlah banyak
*Melayani Pengiriman Seluruh Indonesia (JNE)
*Melayani COD, Gojek dll (sekitar JABODETABEK)
*Harga yang tertera belum harga sebenarnya, harga dapat ditentukan setelah pembeli bernegosiasi terlebih dahulu
**Bergaransi
*** Serius Buyer harga dapat di nego, sampai deal
