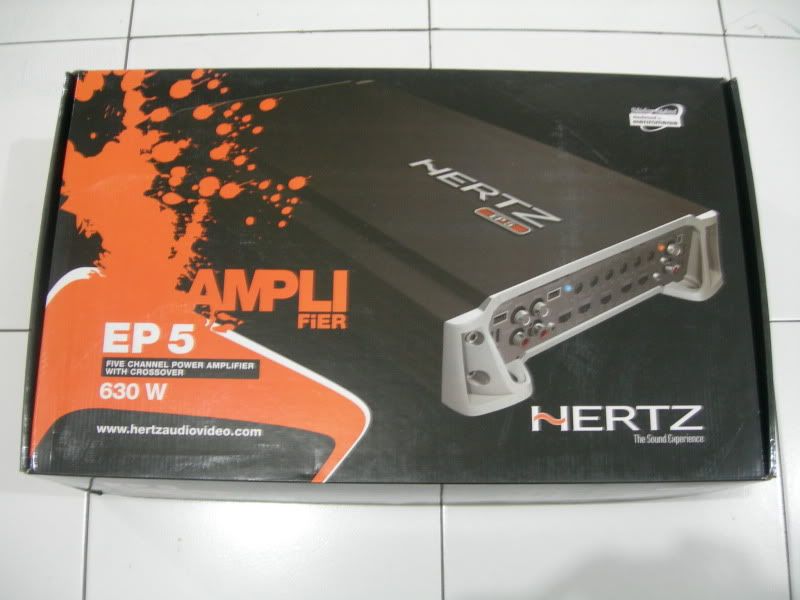

Power 5 channel HERTZ EP 5

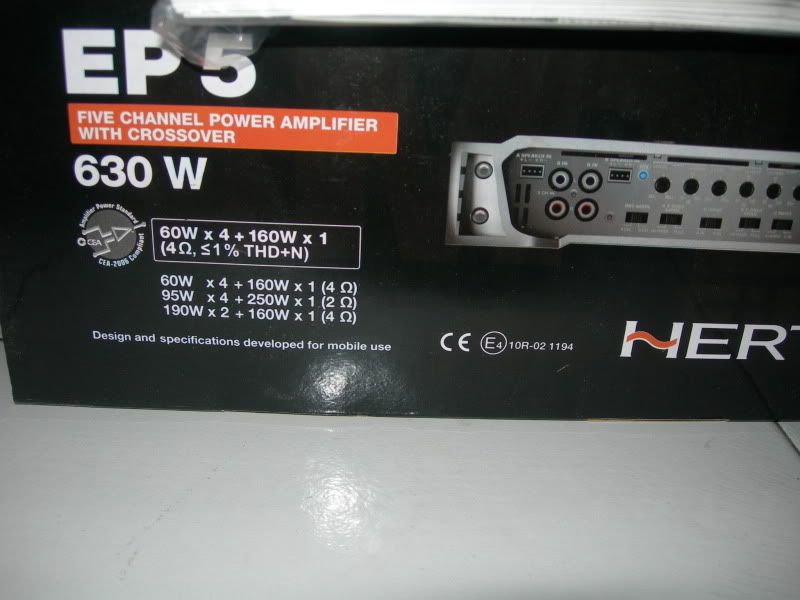

Spesifikasi : 4x60w + 1x160 W @ 4 ohm
4x95w + 1x250 w @ 2 ohm
1 FR-4 dual-layer 70μm copper thick PCB and robust copper bars for high current transfer,
shorter audio signal paths and high reliability.
2 Output stage based on High Current & Power Dissipation SANKEN TO3P transistors.
C channels, dedicated to the subwoofer, are realized with single hi-power output stage
instead of bridged internal configuration of traditional designs offering higher power and
control on the subwoofer speaker.
3 Dual separate power supply stages for A, B channels and C channel based on Multi-winding
toroidal transformer and Low ESR 105�C resistant electrolytic capacitors.
4 Special pseudo-balanced dual input circuitry to reject electromagnetic disturbances present
on the Pre-amplified or Speaker-In.
5 Pre-amplified and Speaker-In allow interface with aftermarket or OEM sources.
Speaker-In are provided with compact “install-friendly” connector.
6 ARTTM-Automatic Remote Turn-On/Off function turns the amplifier on and off in perfect sync
with the source, eliminating the need for a remote signal when using the Speaker-In.
Remote Out signal is also provided to turn on/off other components installed in the system.
7 Flexible crossover system allows full range or hi-pass 12dB/Oct. filter on A & B channels for
front plus rear configuration and lo-pass 24dB/Oct. filter on C channel for optimal subwoofer driving.
8 3-Channel mode switch is provided to easy set up the amplifier for high power front speaker
system plus subwoofer to achieve up to 190W x 2 (4Ω) + 250W x 1 (2Ω).
Price €460
x-file Audio 085231777705/08563002775
|
