JUAL Warn M8000 PIN BB.2A7B13B1

tokooffroad

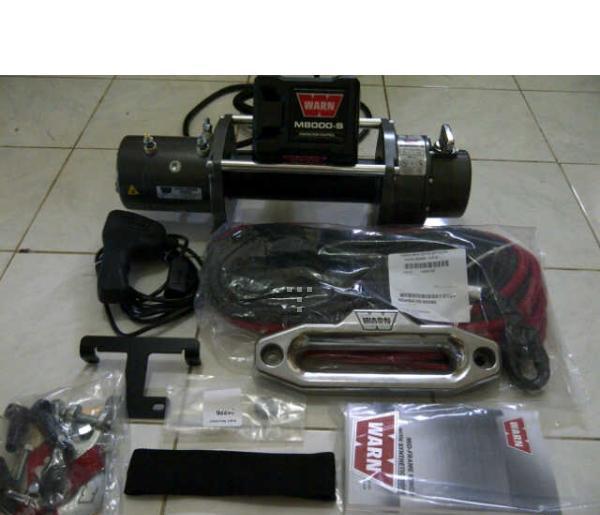

Warn M8000 Rp.5,000,000

M8000 SPECS/PART NUMBERS
Part Number: PN 20910 CE (12V DC) 80' wire rope and hawse fairlead
Part Number: PN 26502 CE (12V DC) 100' wire rope and roller fairlead
Part Number: PN 265032 CE (24V DC) 100' wire rope, roller fairlead, safety hook and thimble
Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.)
Fairlead for PN 20910: Hawse
Fairlead for PN 26502, 265022, 265032: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625
Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.) Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
