baru datang 3 biji:
All New Hammer Transfer Case
Ratio - 1.47:1 Gears - Wide 32P steel gears Features - 8 bearings, cast casing, hardened gears
All New R3 2 Speed Transmission
Ratios Pinion/spur 14/64 = 4.57:1 1st gear
3.47:1 2nd gear 1.27:1
Gears - Wide steel 32P, Delrin spur, slipper clutch,
Features - Machined billet aluminum casing, scale looking, Motor mount can be rotated to 10 different positions,
compatible with other brand spurs (Axial, Traxxas, Robinson)
Cast Yota Axles
Ratio: 15/40 = 2.67:1 Width at hex (using 4mm TF2 hexes): 176.5mm
All New Trailfinder 2 Chassis
Features - Billet aluminum constriction Adjustable shock hoops
Driveshafts
High quality plastic material, very durable High quality steel Yokes
Wheels
Name: 1.55 OEM beadlock wheels Hub: 12mm hex Width: 22mm Back spacing: 9mm
Features: Stamped steel, aluminum hub, internal beadlock, very scale looking, 6 bolt pattern,
Bumpers
Tough Armor TF2 Winch front bumper Tough Armor TF2 Rear Bumper Tough Armor TF2 Side Sliders Authentic
looking crawler style tube bumper. Very high quality flexible plastic, very durable, very scale.
TF2 Truck Dimensions
Wheels base: 287mm (11.3") Width:
215mm (8.5") Height: 210mm (8.25")
Ground clearance: 57mm (2.5")
Final Drive Ratios: 1st - 62.1:1, 2nd - 22.75:1

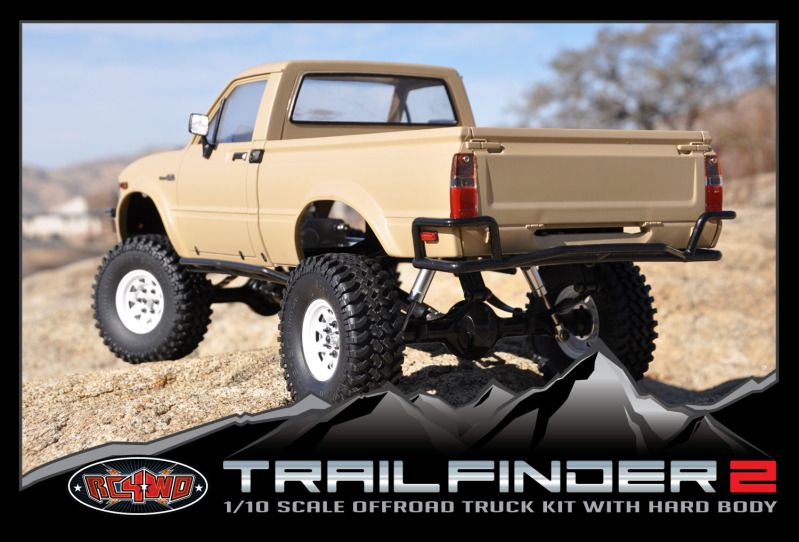

Trail Finder 2 Truck Kit w/Mojave Body Set
